MODEL: 8HC

Year: Approx. 1995

Control: Fanuc Series 15-T

Location Brampton ON

Technical Specifications: (Subject to Verification)

Chuck Size                              : Ø 8”, Kitagawa B-208

Max Turning Diameter           : Ø 14.6″

Max Turning Length               : 20.7″

Max Bar Capacity                   : Ø 2.05″

Swing Over Bed                     : Ø 19.7″

Distance Between Centers      : 21.9″

X Axis Travel                         : 8.3″

Z Axis Travel                          : 21.7″

Rapid Traverse X Axis           : 630 IPM

Rapid Traverse Z Axis            : 787 IPM

Spindle Nose                           : A2-6

Spindle Bore                           : 2.4″

Spindle Speed                         : 40 – 4000 RPM

Spindle Motor                         : 25 HP

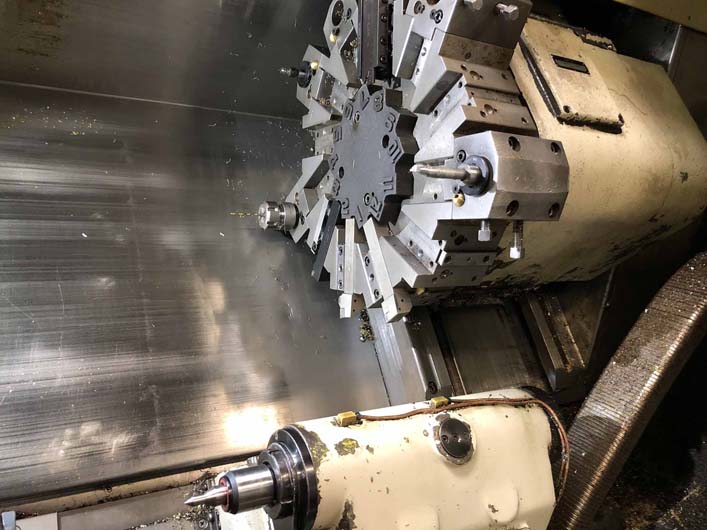

Turret Capacity                       : 12 Stations

Turret Index Time                  : 1 Second

Tailstock Taper                       : MT-4

Tailstock Quill Dia                 : 3.1″

Tailstock Quill Travel             : 4.0″

Electrics: Power 220V, Phase 3, 60 Hz.

EQUIPPED WITH:
