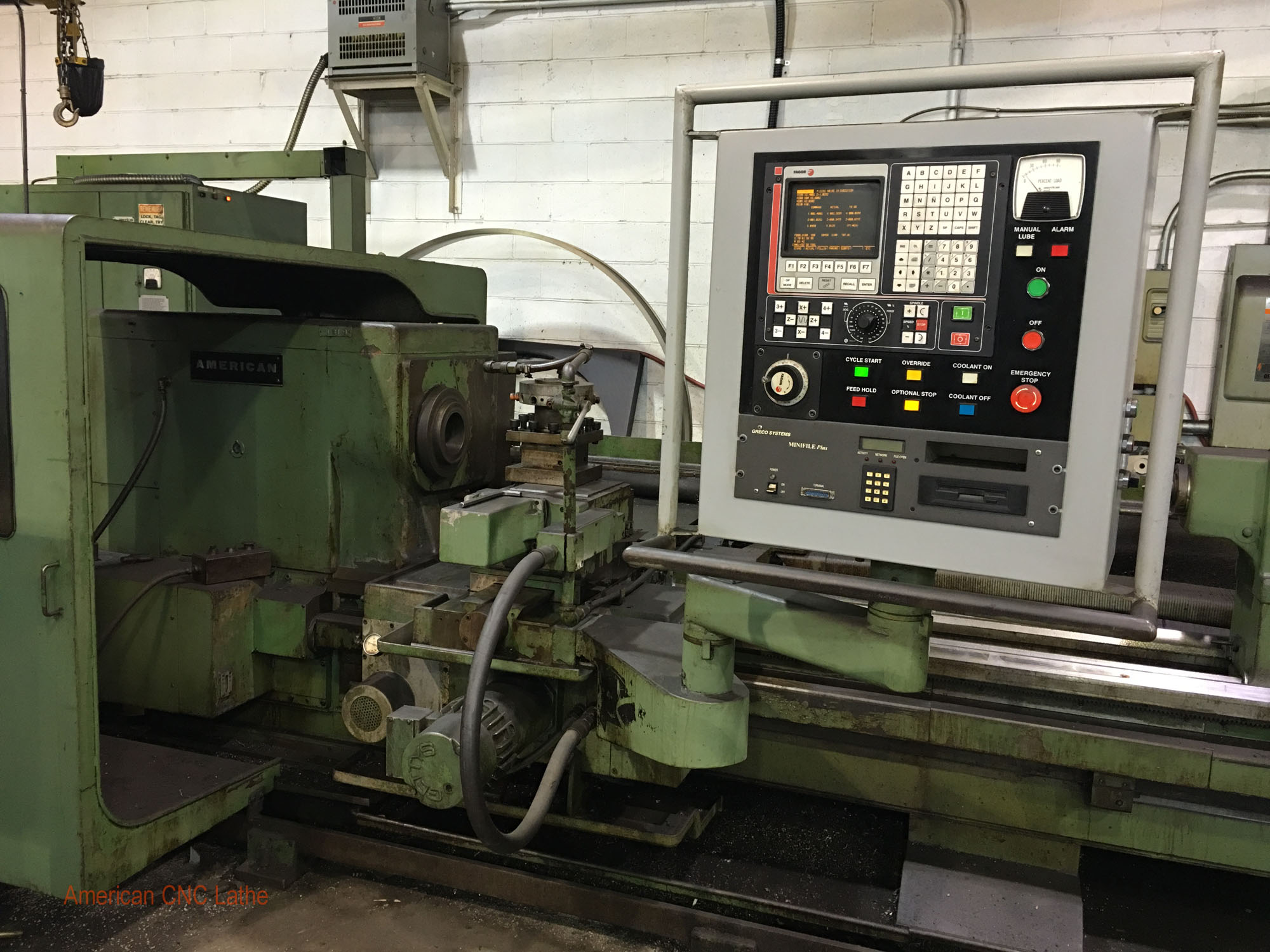

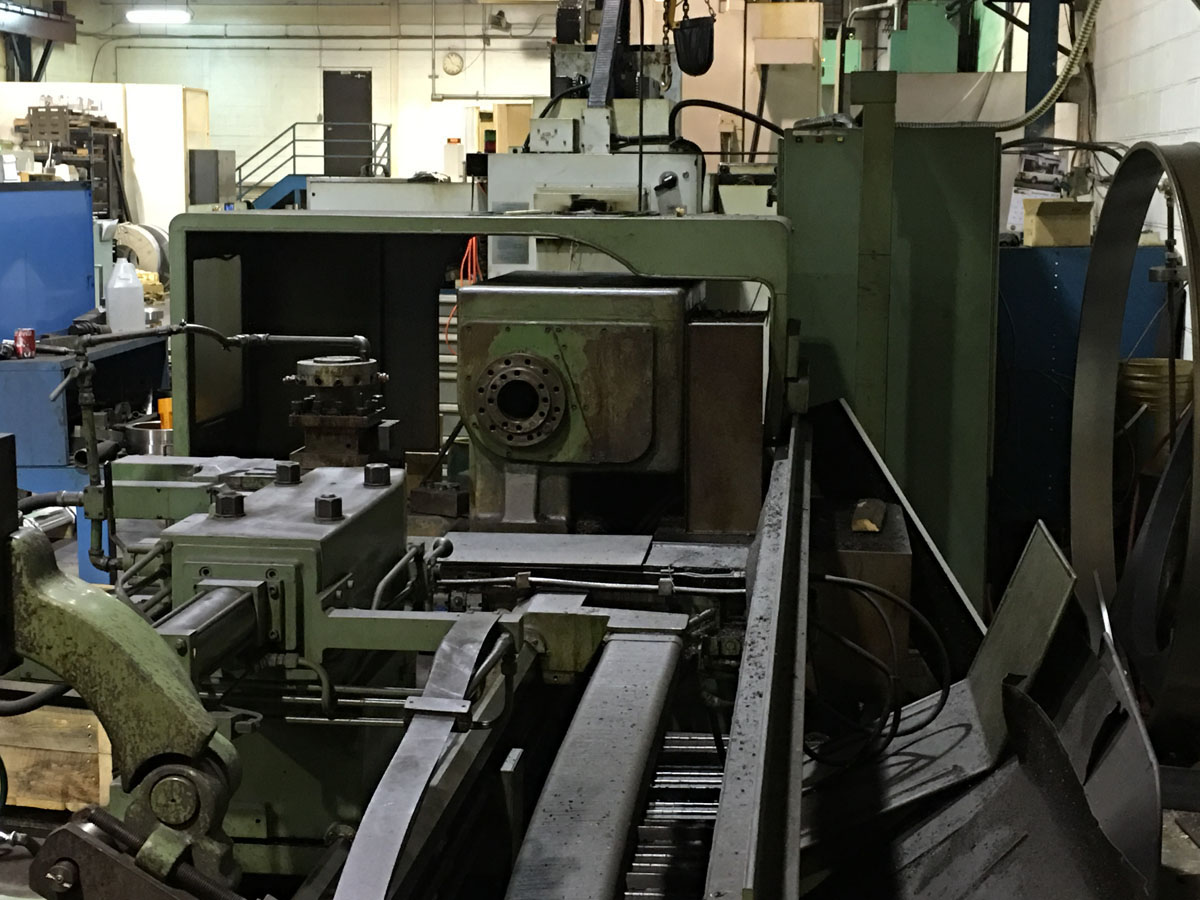

American CNC Flat Bed Lathe

Model 3220S X 120

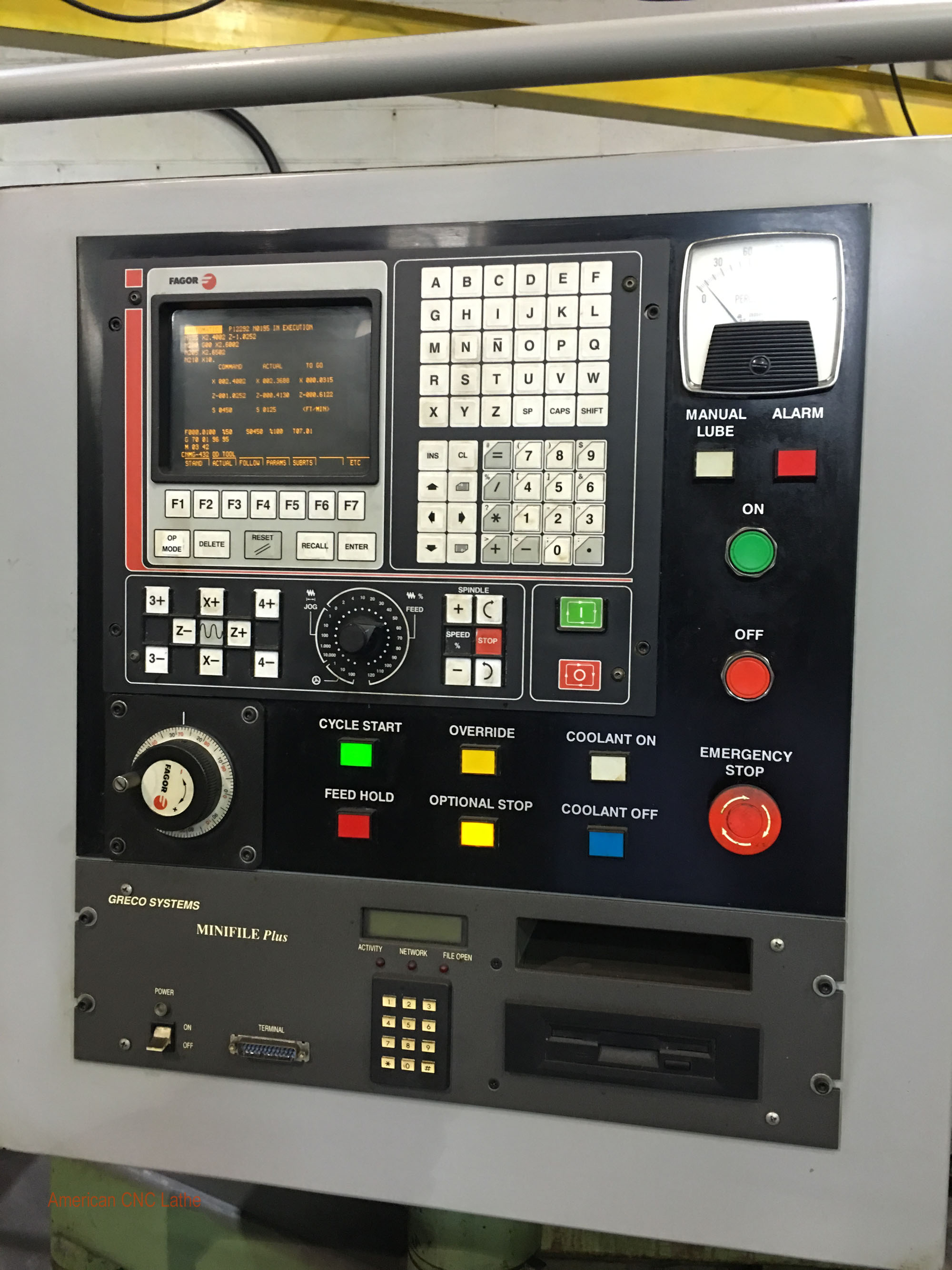

Control Fagor 8055 TC CNC Control w/CRT

Technical Specifications: (Subject to Verification)

Max Swing Over the Bed                              : Ø32”

Max Swing Over Cross Slide                        : Ø20”

Max Tailstock Position                                   : 120"

Max Machinable Center Distance             : 120"

Chuck Size (Manual 4-Jaw)                          : Ø24”

Cross Travel (X-Axis)                                       : 23"

Longitudinal Travel (Z-Axis)                         : 120"

Cross Feed Range (.01 Increment)           : .01-20"

Longitudinal Feed Range (.01 Increment): .01-20"

Rapid Traverse Rate                                        : 200 IPM

Spindle Bore                                                      : 4-5/8"

Spindle Nose                                                     : A1-11

Spindle Speeds (12), Range                         : 8-1200 RPM

Spindle Horsepower                                       : 60 HP

Tailstock Spindle Taper                                  : #5 MT

Electrics                                                                : 460/3/60

Approximate Machine Dimensions          : 250" x 130"

Approximate Machine Height                    : 83"

Approximate Machine Weight                   : 31,000 LBS

EQUIPPED WITH:

• Fagor 8055 TC CNC Control w/CRT

• Ballscrews

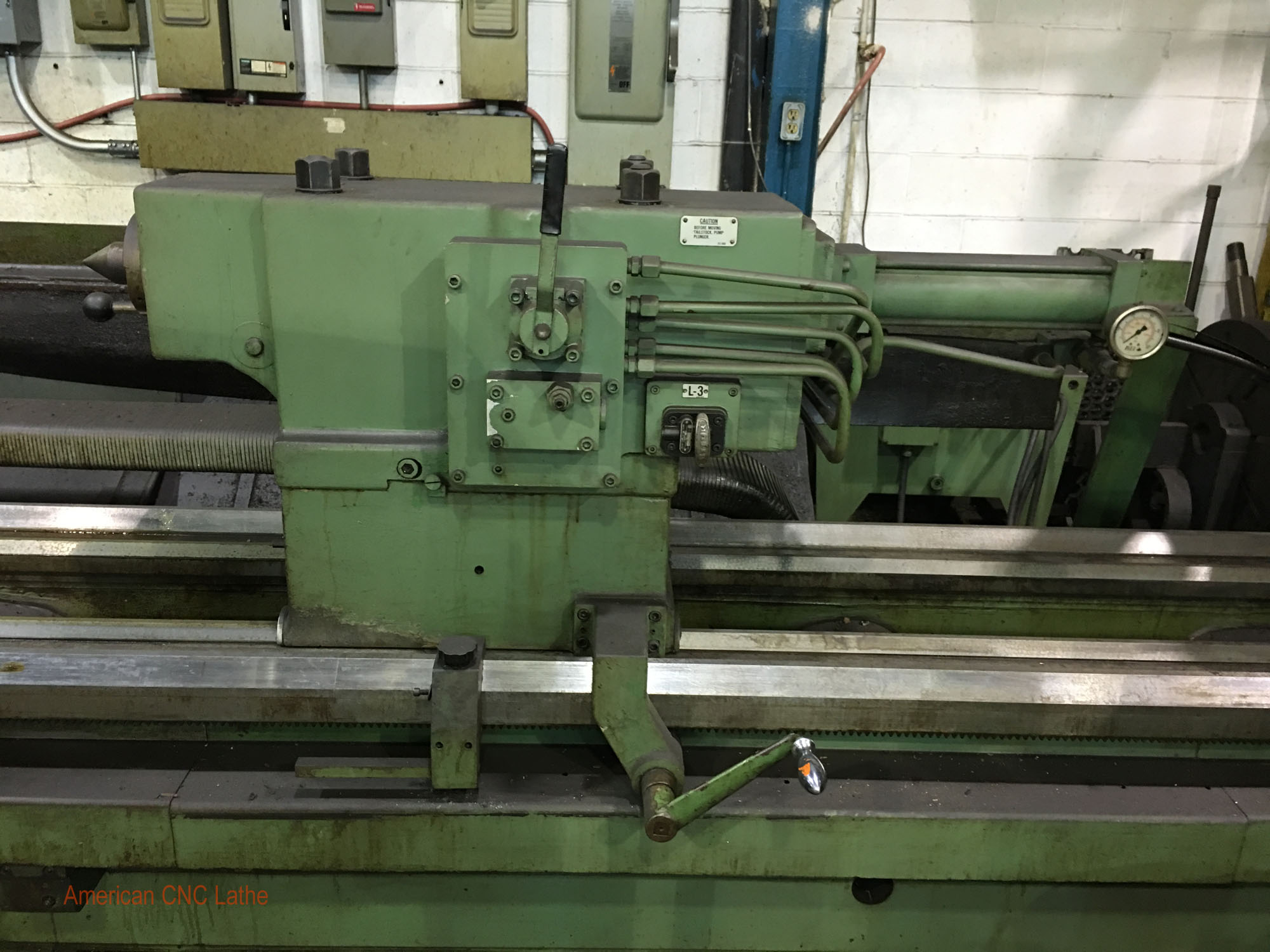

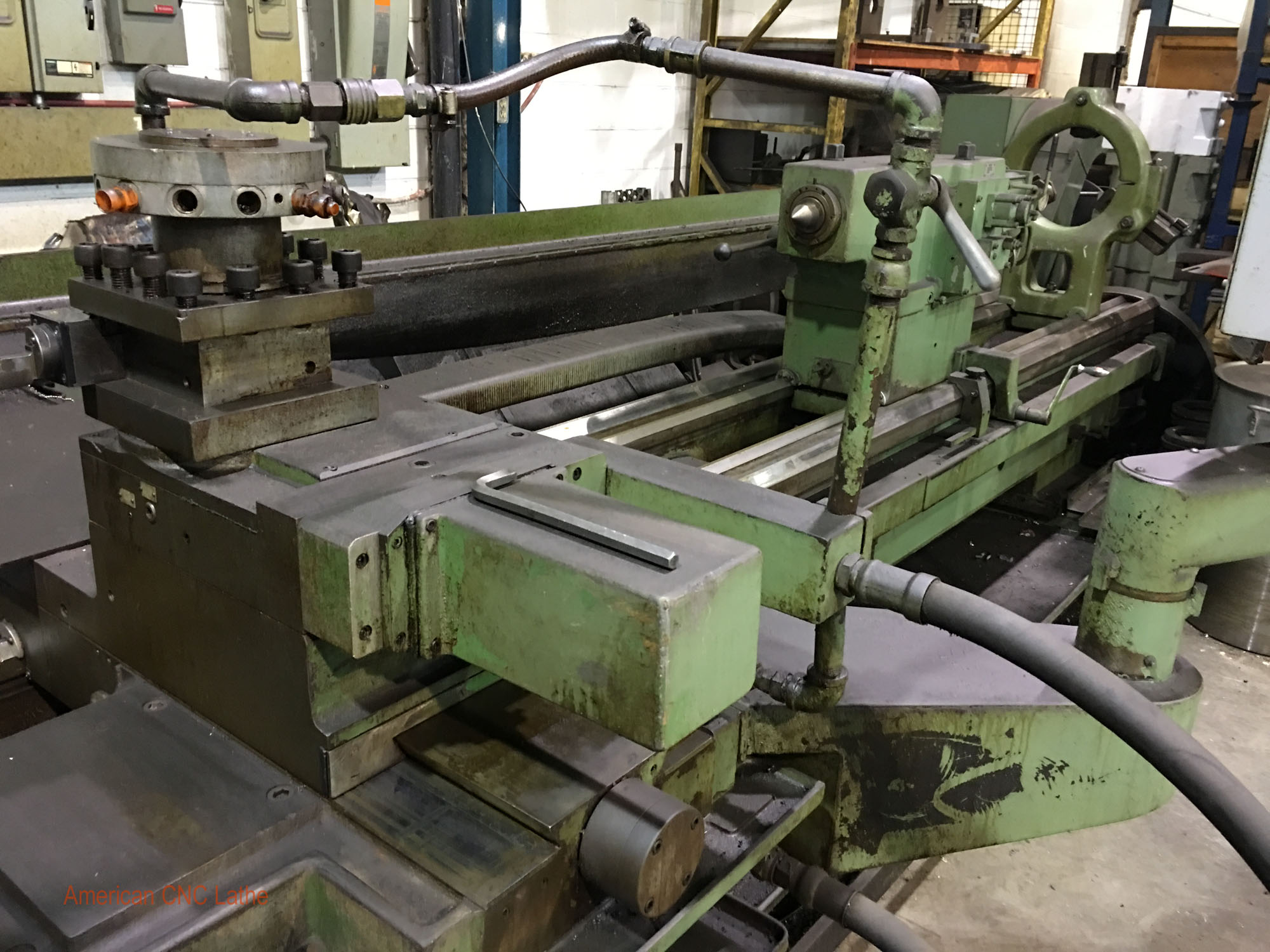

• Heavy Duty Tailstock w/ Hydraulic Quill and Live Center

• 2 no. Steady Rests

• 24" 4-Jaw Chuck

• Coolant System
