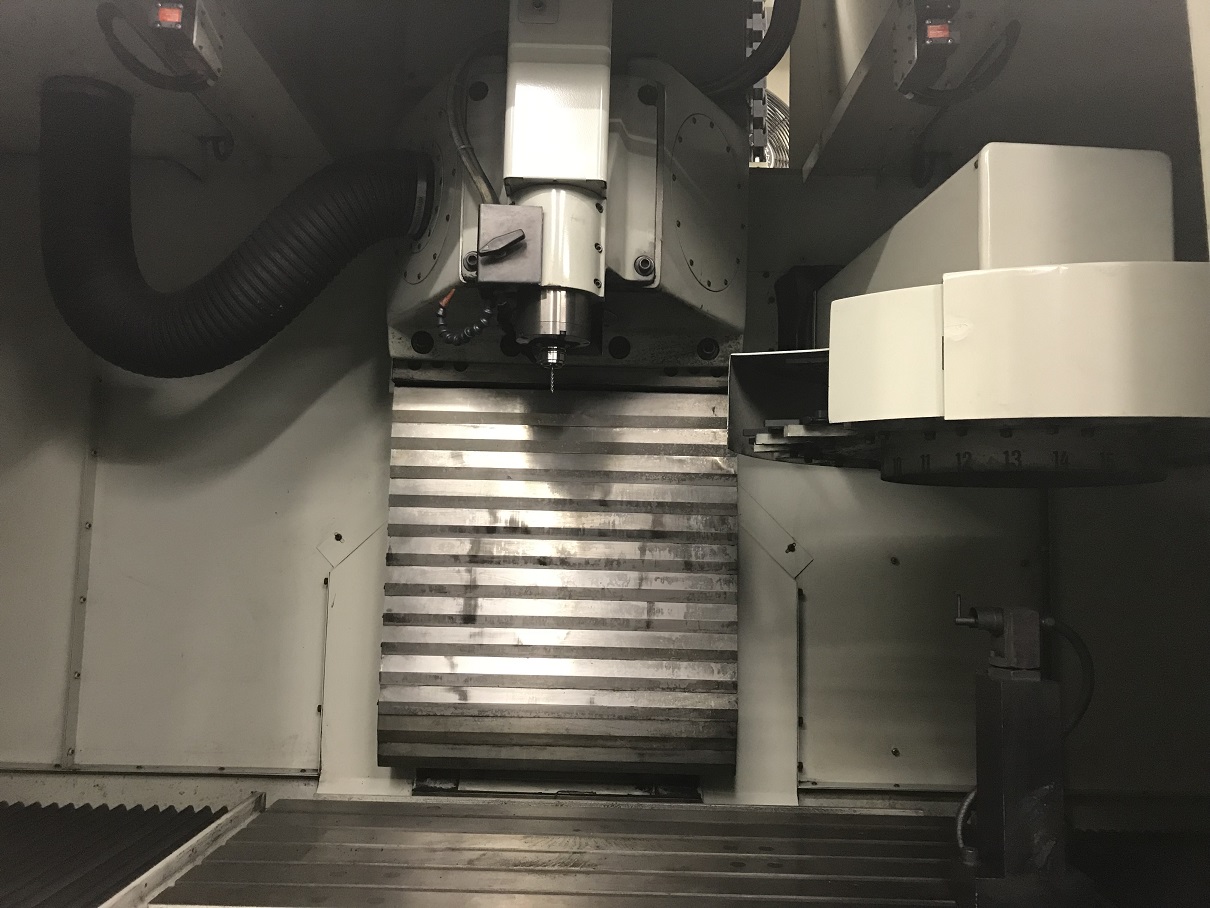

Bostomatic CNC Graphite Vertical Machining Center, Made in USA

Model  : BD32GS

Year    : 2000

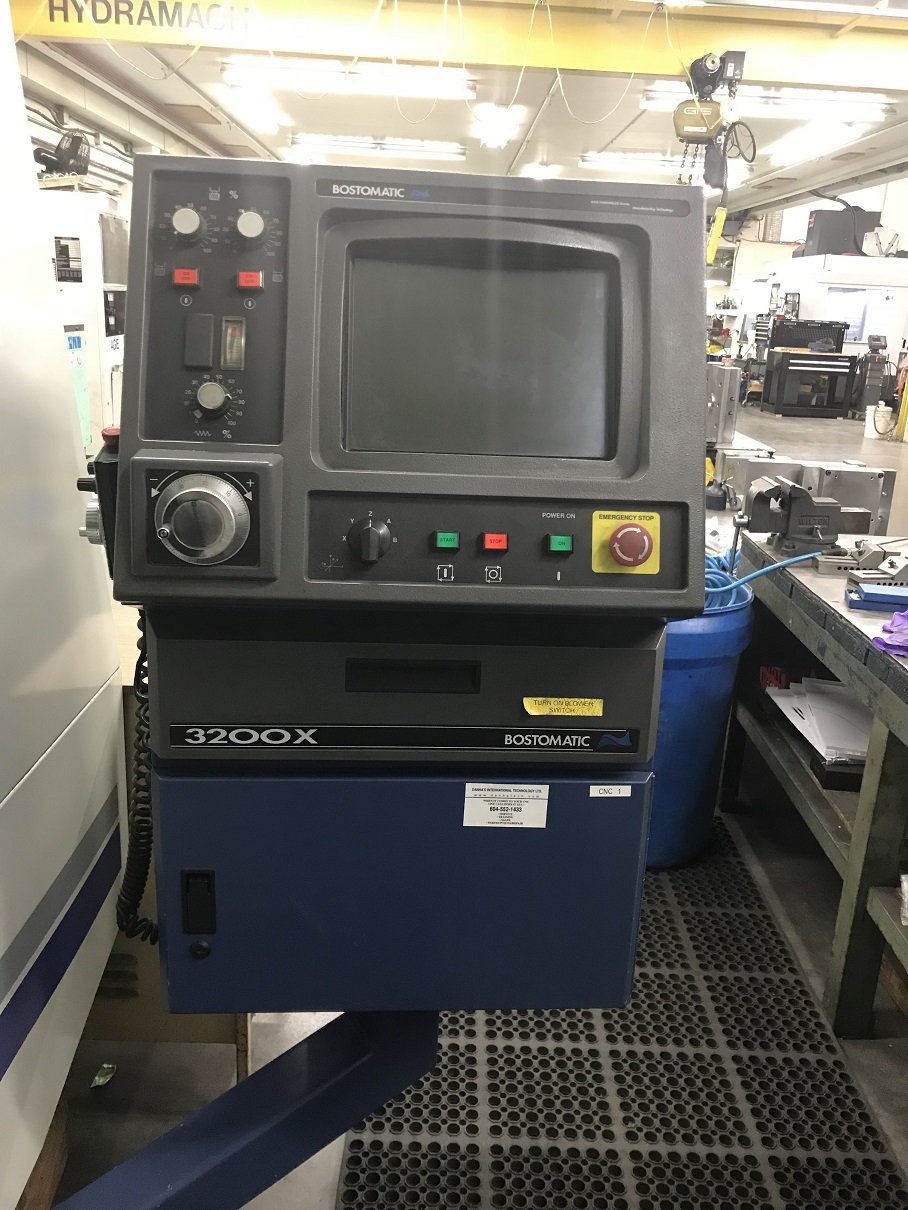

Control: Equipped with Bostomatic BDC 3200X CNC (Touch Screen)

Location: BC, Canada. Currently powered in high end toolroom.

Technical Specifications (Subject to verification)

Table size                    : 40” x 17”

X-Axis Travel             : 31”

Y-Axis Travel             : 16”

Z-Axis Travel              : 20”

Spindle Speed             : 30,000 RPM

Spindle Taper ASI      :25 taper

Tool Changer Capacity: 20 ATC

Horse Power               : 10 HP.

Max. Table Load         :750 Lbs.

Machine Weight          : 11,550 lbs.

Power Input                : 460 Volt 3 Phase

Horsepower                 : 7.5 HP

Power Input:  Volts    : 460, Amps: 40, Hertz: 60, Phase: 3

Equipped with:

·         Tool Setter

·         Ethernet

·         Glass Scales

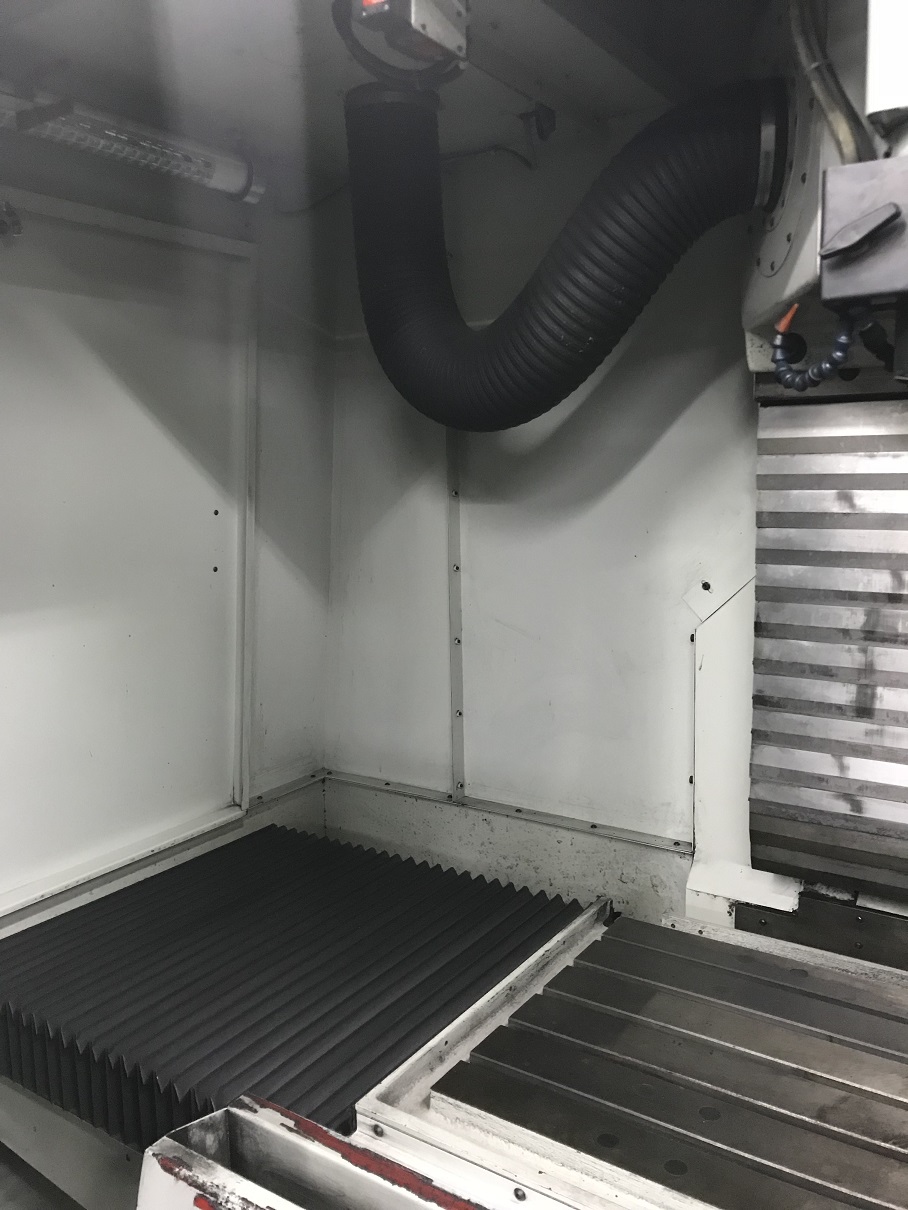

·         Complete Graphite and Dust Removal Ventilation System

·         Control: Equipped with Bostomatic BDC 3200X CNC (Touch Screen)
