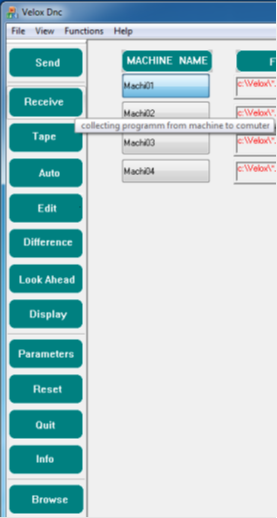

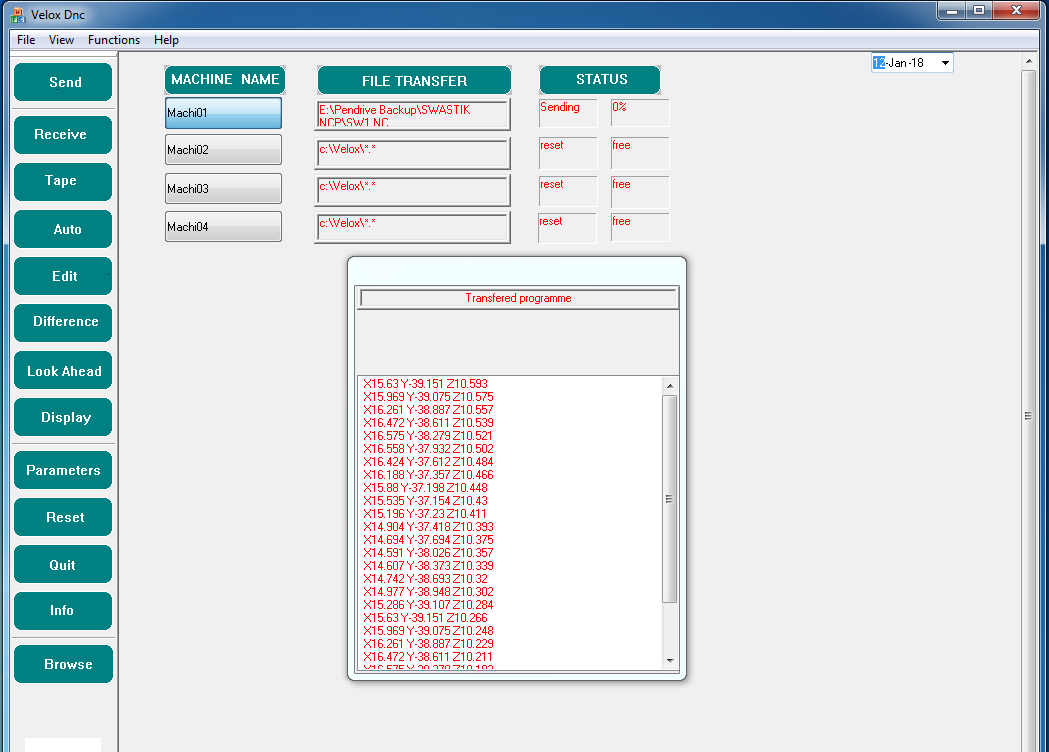

Receive –Receiving NC Data From Machine to Computer Manual Mode.
Tape – Tape Mode is for ETR DNC Mode which is specially for Fanuc 6M Controller for running 3D Program on Machine which is also used as Memory Expansion Function on old Controllers having Tape Mode on CNC Control Panel.
Auto – Auto Mode is for Up Loading & Down Loading NC Program from PC to Machine & Visa versa Automatically from standing on CNC Machine and call the Program through Agent Program which is the most Important Function on this Software & Benefited for CNC Shop Floor with out disturbing each others communications as it is Multi Tasking method , Above Data Transferred can be done Simultaneously for all CNC Machines connected with any restrictions or Waiting.

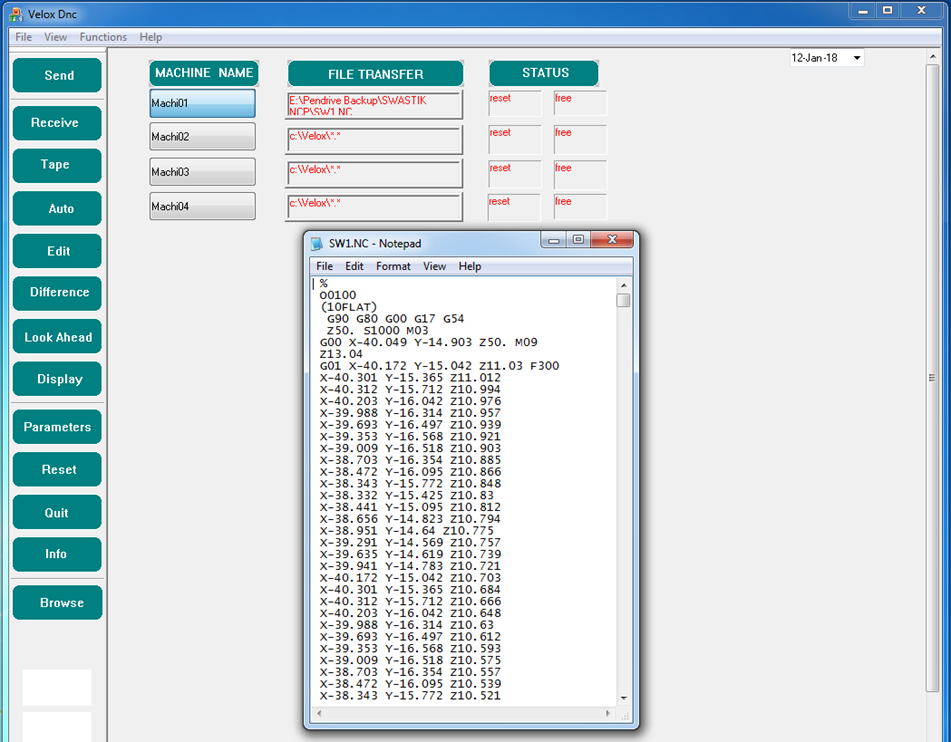

Edit – Edit Mode is Normal Windows Notepad & WordPad Editor for editing NC Programs on Software.

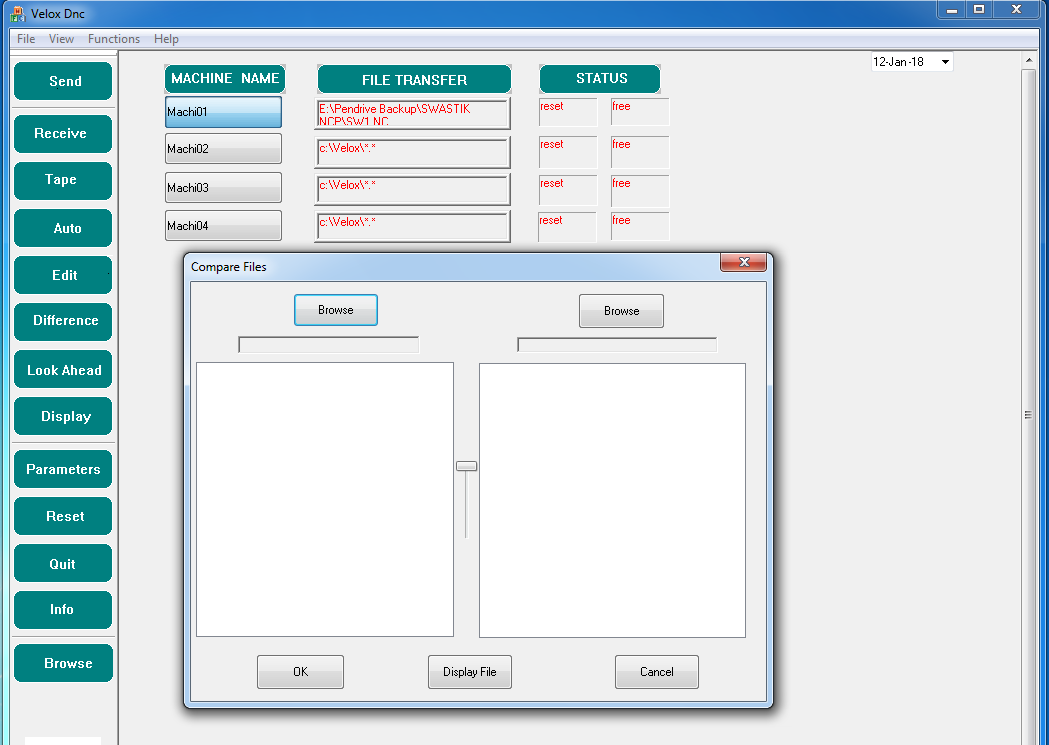

Difference – This is for Viewing NC Program Changes Made from Original program can be check on Differences mode easily.
Look Ahead – Look ahead Function is for seeing Running NC Blocks on Software and can be used for Editing NC Blocks while Power Failure occurs or Start the program from middle were it was stop.

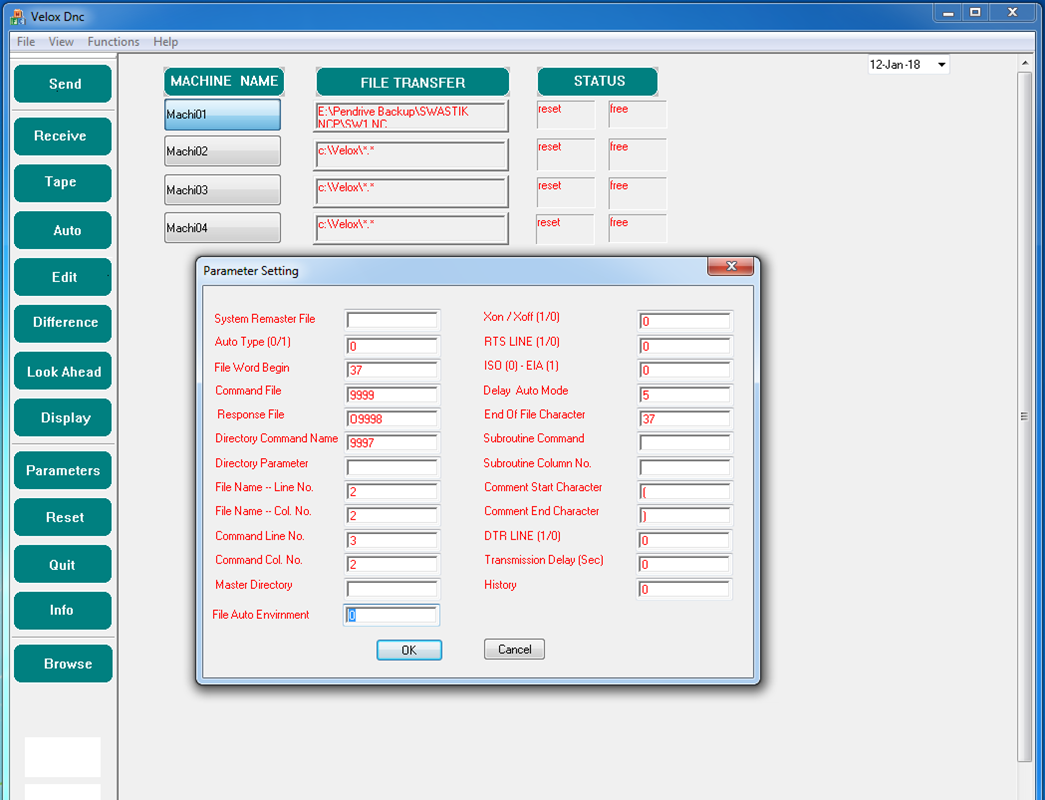

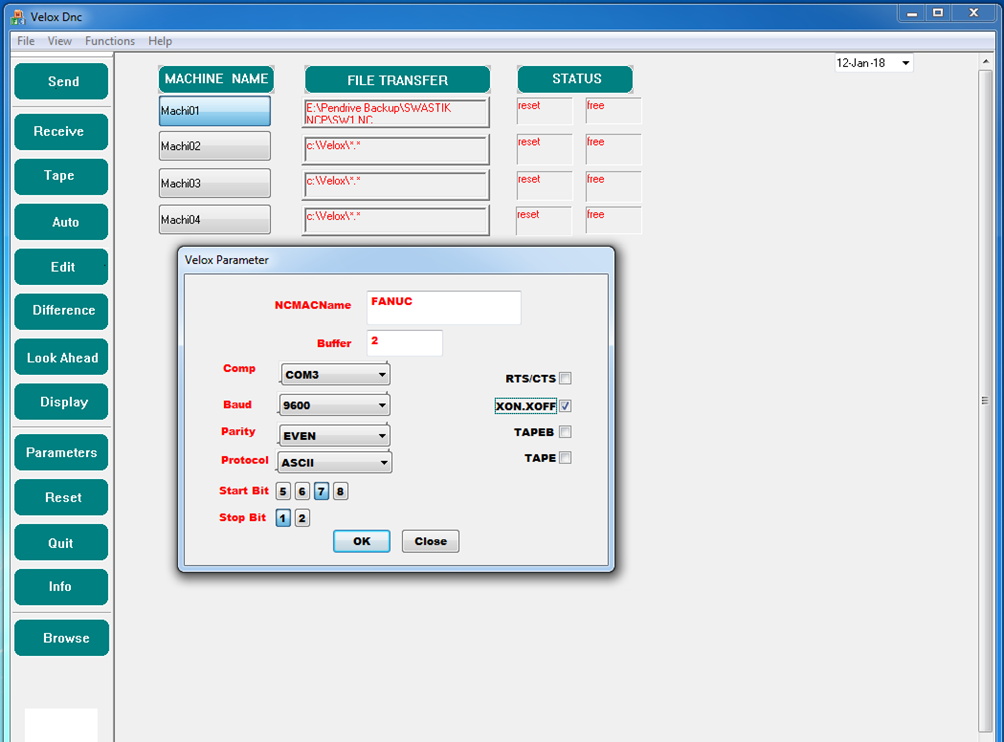

Parameters – Setting Communication Parameters between Machine & Software which should be same.

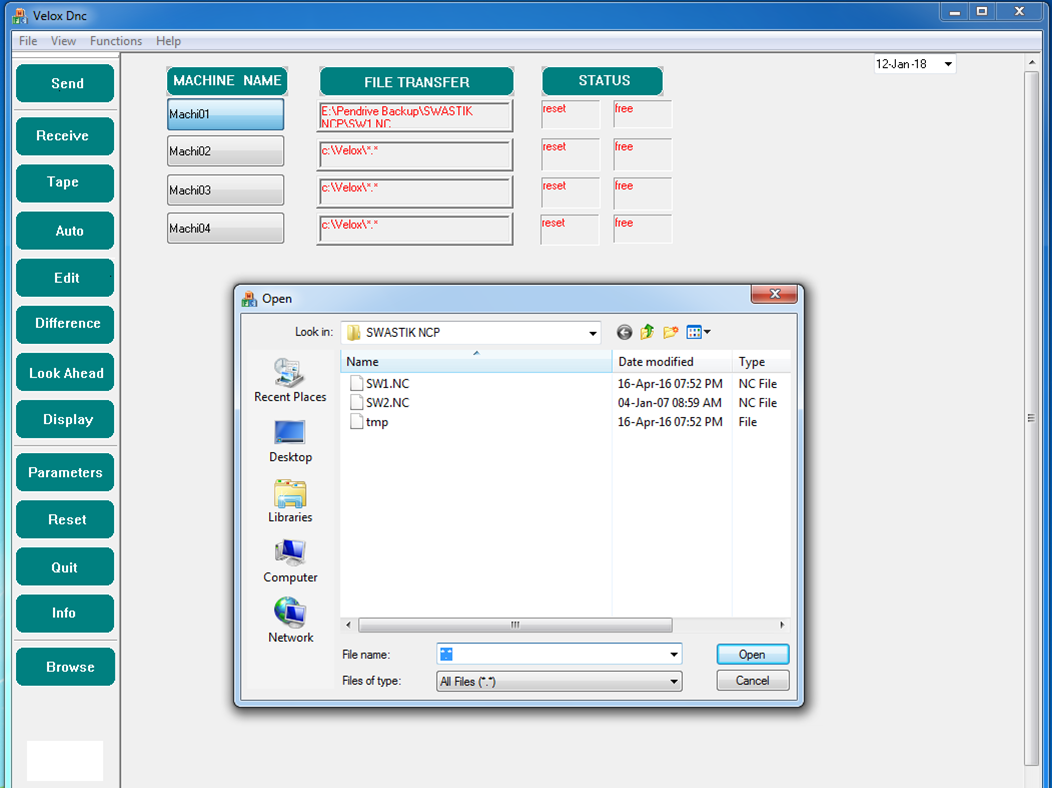

Browse – Browsing NC Files for Data Transfer to Machineor to Save NC Program from Machine to PC , Also for Selecting Job NC Files for Machining Purpose.
